Custom Report Builder – T02 Table Widget

1.1 Widget Setting

1.1.1 Data Tab

1.1.1.1 Preview

1.  Dimensions
   1. A list of dimensions. Users are able to drag the dimension to the Filter or Split area to render out the result for the table.
2. Measures
   1. A list of metrics. Measures are the values that will be aggregated over the selected data. Users are able to drag the metric to the Measure area to select the metric for the widget.
   2. The naming structure of measure: [Metric Code]_[Count Mode]_[Aggregation Formula] (e.g. FC01_1_Sum)
   3. For metric code definition, please refer to Appendix B - Metrics Definition
   4. The following count mode stand for:
      1. 1 - People,
      2. 11 - Visitor People,
      3. 21 - Staff People,
      4. 12 - Car Vehicle
3. Filter
   1. Users are able to select the dimension to filter (WHERE clauses) the data for the table. By default, the filter will follow the report granularity to preselect a few dimensions. (e.g. Company level report will auto filter with latest date, company id and company name).  If users drag a non-preselected dimension (e.g. Area), this widget will become data binded and the graph output will follow the selected option of the dimensions.
   2. Filter Configuration:

      Item	Description
      1. Time	Default filter date range based on the widget's time interval. Minutes, 15Minutes, Hours - Latest Day Days - Latest Week Weeks - Latest Month Months, Quarter, Year - Latest Year Users are able to select the data range to preview the table output. If user select relative time, the selected time will not apply to the real data for the graph to display (only for preview display purpose). If user select fixed time, the selected time will apply to the real data for the graph to display. Not Supported Time Shift function.

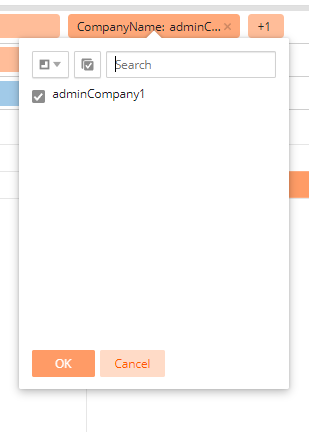

      2. Data	Users are able to select for the dimension options to preview the table output. If there are extra filters (not preselect dimensions), this widget will be considered as data binded. For example, if the selected granularity of the report/dashboard is Site, the preselected dimension will be Company and Branch. If users drag a non-preselected dimensions (e.g. Area), this widget will become data binded and the table output will follow the selected option of the dimensions.

4. Split
   1. Users are able to select the dimension to split (GROUP BY clauses) the data for the table.
   2. Split Configuration:

      Item	Description
      1. Granularity (Only Supported for Time Dimension)	Time - Time Granularity based on the widget's time interval. Time2 - Users are able to select the granularity for Time, which are minute, hour, day, week, or month.
      2. Sort By	Sort according to the selected option.
      3. Order By	Order by ascending or descending.
      3. Limits	Select the output limit (5, 10, 25, 50 or 100).

5. Measure
   1. Users are able to select the measure to render the data for the table.

6. Element Type
   1. Preview the result in different element types (only for preview display purpose).
7. Preview Screen
   1. Users are able to preview the table output in different element types based on the selected dimensions and measure in filter section, split section and measure section.

1.1.1.2 Preview Table

Users are able to configure the display name of the column for the table. By default, the display name will follow the default name of the selected dimensions/measures.



1.1.2 Settings Tab

Item	Description
1. Chart Title*	Title for the table (Maximum 30 characters)
2. Export Name*	Export name of the widget for the export function

*Required field

1.1.3 Advanced Tab

Item	Description
1. Show YTD	Check this checkbox if the table need to display date according to the period of the time beginning the first day of the current calendar year or financial year up to the current date
2. YTD Option	Select the Year to date(YTD) format. By default, Calendar Year will be selected. Calendar year is a one-year period that begins on 1st of January and ends on 31st of December. Financial year is a one-year period that begins on the start date of the financial year as configured in the company settings
3. SSI (Optional)	Apply custom SSI code by selecting the SSI template or enter the code in the text area.
