Engineering Excellence
Our hardware design prioritises durability, reliability, and accuracy.
Highest Accuracy, Assured
Equipped with a Quad-core CPU and GPU processor, it powers the most advanced stereo-vision image processing algorithm and AI video analytics, achieving up to 99.9% accuracy, even in environmentally challenging conditions.
Learn more on Accuracy

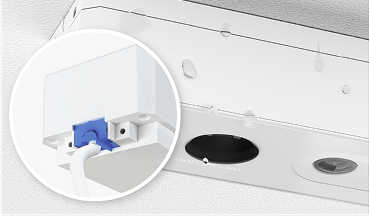

Splash-Proof Enclosure Prevents Device from Water Damage
80% of hardware failures result from water damage, often caused by water leakage from the ceiling or faulty water sprinklers. To combat this, FootfallCam 3D Pro2 is specially designed with a splash-proof casing to reduce device failure rates, ensuring enhanced hardware reliability.
Aluminium Casing for Heat Dissipation
FootfallCam employs an aluminum enclosure that functions as a 'giant heatsink,' enabling superior heat dissipation. This leads to a 35% reduction in operating temperature, improved electronic component performance, extended lifespan, and ensures product reliability with a 25-year Mean Time to Failure (MTTF).
Zero Downtime, Dual Operating Systems
Equipped with dual processors for redundancy, automatically recovers from complete failure, minimising RMA. Shielded against lightning, electric spikes, and heavy read-write operations to prevent OS corruption.
Technical Data
Technical Data
|
Device Dimension (mm) |
154 (W) x 59 (D) x 40 (H) |
|
Packing Dimension (mm) |
200 (W) x 170 (D) x 50(H) |
|
Weight |
Device: 0.4 kg Packing: 0.86 kg |
|
Camera |
2x 5MP, 160°, 5MP omni-vision, 5647 camera modules , RAM 1GB |
|
Illumination |
Minimum 1 lux (with externalInfrared light source) |
|
Frame Rate |
25 fps (Live Stream of counting willonly display 320x420 resolution toreduce bandwidth sent to databasefor verification purpose) |
|
Indicator |
RGB LED status indicator |
|
Casing |
Made by Aluminium oxide alloy fordust resistance with 1mm temperedglass lens-covering. |
|
IP Rating |
IP64 |
|
Storage |
Built-in, 8 GB Storage |
|
Ideal Mounting Height |
2.1 metres – 4.5 metres |
|
Operating Environment |
Temperature 10°C to 45°C,Humidity 10% to 90% |
|
Storage Environment |
Temperature -40°C to 70°C,Humidity 10% to 95% |
|
Tracking Technology |
3D-Spacing Mapping Video TrackingTechnology and background removal on static objects. |
|
Field Upgradable |
Manual / Auto Software upgrade |
|
Power Over Ethernet |
Yes (IEEE802.3at) |
|
PoE Mode |
Mode A/B |
|
Voltage |
48~56 VDC |
|
Power Consumption |
6W |
|
Cabling |
Cat5e/Cat6, 100Mbps |
|
Origin |
Made in the UK |
Firmware Specification for Device Level
|
Interface |
Http; Https |
|
User Levels |
2 levels: Administrator, Standard Usery |
|
Operating System |
Footfall Counter OS |
|
Ethernet |
10/100 Mb Ethernet |
|
Data Delivery |
TCP/IP |
|
Database Type |
SQLite |
|
Report Format |
csv, .xml, .txt |
|
Data Storage on counter level |
Hourly Data: 300 days; Raw Data: 7 days; 3 days *Data which has sent to server will keep permanently in server level |
|
Data Backup |
Yes |
|
Firmware Feature |
Secure Operating System with Multicore Processor, Adaptive IR based on Lighting Conditions, Device Health Check, Built-in External Watchdog |
|
Data Upload to Server |
Every Hour |
|
Average Data Transfer Rate* |
10.0 kilobytes/hour |
*Average Data Transfer Rate is measured with a predefined sample size of 20 requests per hour

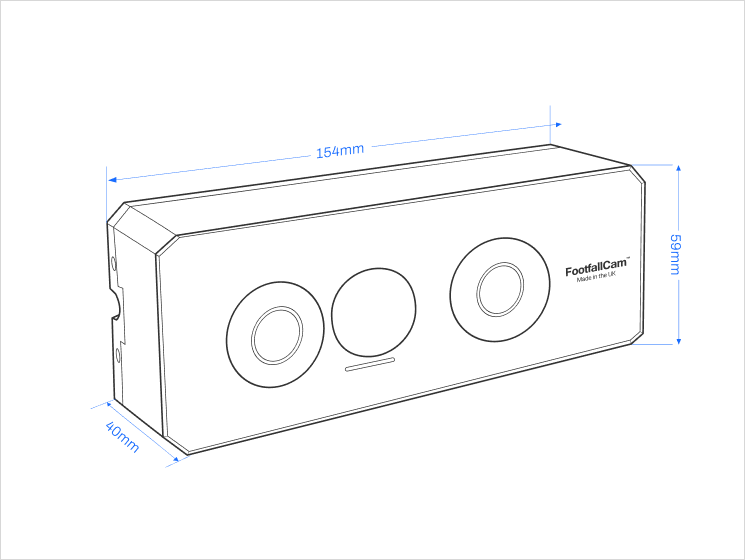

Product Dimension
Coverage Table
|
Ceiling Height (m) |
Lens Degree |
Coverage Area (m) (Horizontal FOV x Vertical FOV) |
|
2.1 |
160 |
1.57 x 1.17 m |
|
2.5 |
160 |
2.62 x 1.96 m |
|
3.0 |
160 |
3.94 x 2.93 m |
|
3.5 |
160 |
5.25 x 3.91 m |
|
4.0 |
160 |
6.56 x 4.89 m |
|
4.5 |
160 |
7.08 x 5.28 m |
Notes:
- For mounting height >4.50m, please contact [email protected] for another mode recommendation of FootfallCam.
- For mounting height >8.00m, recommend to use drop pole when installing the counter to the acceptable range
Easy to Setup
FootfallCam 3D Pro2™ people counter installation is simple and straightforward. It can be carried out by your electricians or contractors. Alternatively, contact one of our local installer for a quote.
3D Pro2 Installation Guide
